Application purposes

• For floor inlets

• For renovations, conversions and new buildings

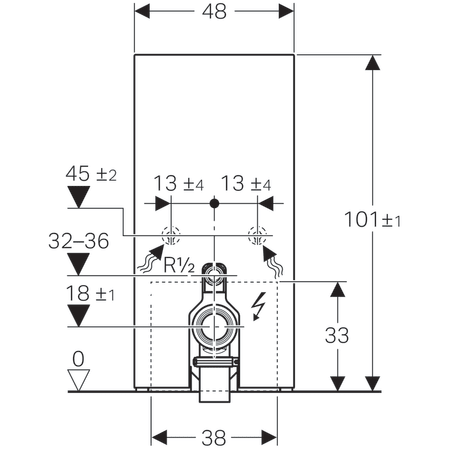

• For wall inlets with an inlet height of 18 cm

• For floor-standing WCs with water inlet height 32–36 cm above floor in accordance with DIN EN 33

• For replacing low-level exposed cisterns

• For replacing floor-standing WCs with close-coupled exposed cistern

• For connecting Geberit AquaClean Sela floor-standing WC

• For connecting Geberit AquaClean WC enhancement solutions, with accessories

• For mounting on finished floors

• For installation in front of drywalls or solid walls

Characteristics

• Dual flush

• Compensation of dimensional tolerances possible

• Front cladding made of glass (ESG)

• Cistern fully insulated against condensation

• Side cladding made of aluminium brushed

• Self-supporting

• Adjustable flush volume

• Soft-touch buttons for flush actuation and odour extraction

• Orientation light and odour extraction activated when a user approaches

• Orientation light can be set in seven colours

• Day/night detection can be set for orientation light

• Odour extraction unit with ceramic honeycomb filter can be installed without tools

• Odour extraction unit automatically switches off after a predefined running time

Accessories

• Lateral water supply connection set for Geberit Monolith sanitary module for WC

• Geberit outlet mounting box

• Operation with extra-low voltage, no mains voltage in cistern

• Water supply connection on the bottom

• Water supply connection on the left/right possible with accessories

Scope of delivery

• Water supply connection set with 2 angle stop valves, 1/2"

• Flush bend extension 160 mm

• Sleeve made of EPDM, ø 44 / 55 mm

• Straight connector made of PE-HD, ø 90 mm

• Adapter socket made of PE-HD, ø 90 / 110 mm

• Connection bend 90° made of PE-HD, ø 90 / 110 mm

• Female socket for mains connection

• Power supply unit

• Base cover

• Fastening material for drywall

• Fastening material

Art. no.               Colour / surface

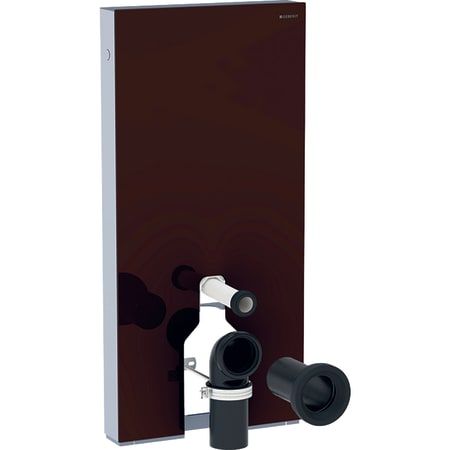

131.201.SQ.5      umber / glass

131.201.SI.5        white / glass

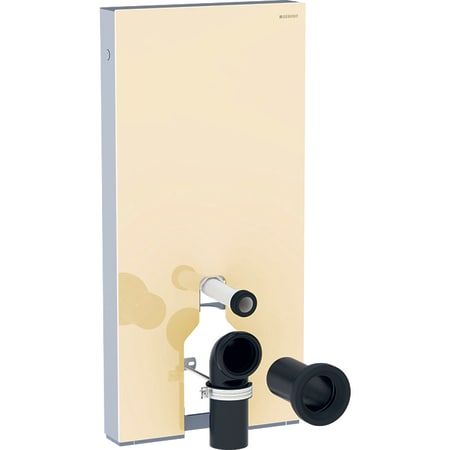

131.201.TG.5       sand / glass

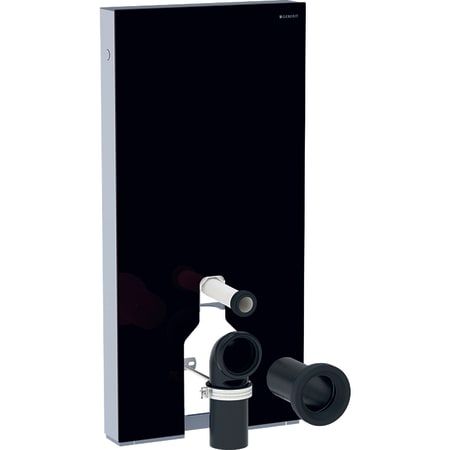

131.201.SJ.5        black / glass
