Application purposes

• For floor inlets

• For renovations, conversions and new buildings

• For wall inlets with an inlet height of 18 cm

• For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109 cm

• For replacing low-level exposed cisterns

• For replacing half-high level exposed cisterns

• For replacing floor-standing WCs with close-coupled exposed cistern

• For connecting Geberit AquaClean Sela floor-standing WC

• For connecting Geberit AquaClean Tuma WC complete solution, floor-standing WC

• For connecting Geberit AquaClean WC enhancement solutions, with accessories

• For replacing pressure flushing valves

• For mounting on finished floors

• For installation in front of drywalls or solid walls

Characteristics

• Dual flush

• Compensation of dimensional tolerances possible

• Front cladding made of glass (ESG)

• Cistern fully insulated against condensation

• Side cladding made of aluminium brushed

• Self-supporting

• Adjustable flush volume

• Soft-touch buttons for flush actuation and odour extraction

• Orientation light and odour extraction activated when a user approaches

• Orientation light can be set in seven colours

• Day/night detection can be set for orientation light

• Odour extraction unit with ceramic honeycomb filter can be installed without tools

Accessories

• Geberit outlet mounting box

• Lateral water supply connection set for Geberit Monolith sanitary module for WC

•Odour extraction unit automatically switches off after a predefined running time

• Operation with extra-low voltage, no mains voltage in cistern

• Water supply connection on the rear centre

• Water supply connection on the left/right possible with accessories

• Water supply connection on the bottom

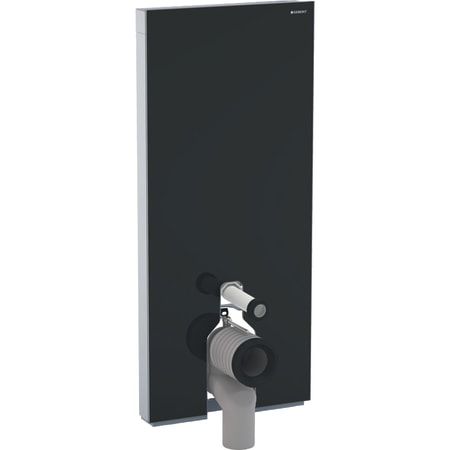

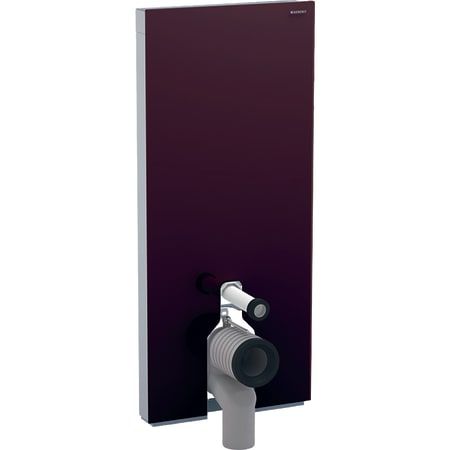

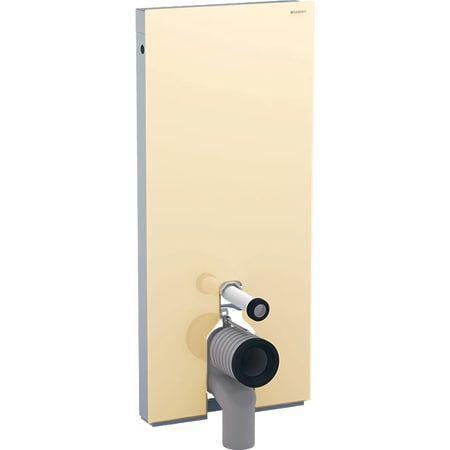

Art. no.                   Colour / surface

131.233.SI.5          white / glass

131.233.SJ.5         black / glass

131.233.TG.5        sand / glass

131.233.SQ.5        umber / glass
