Application purposes

• For floor inlets

• For renovations, conversions and new buildings

• For wall inlets with an inlet height of 18 cm

• For floor-standing WCs with water inlet height 32–36 cm above floor in accordance with DIN EN 33

• For replacing low-level exposed cisterns

• For replacing floor-standing WCs with close-coupled exposed cistern

• For connecting Geberit AquaClean Sela floor-standing WC

• For connecting Geberit AquaClean WC enhancement solutions, with accessories

• For mounting on finished floors

• For installation in front of drywalls or solid walls Characteristics

• Dual flush • Compensation of dimensional tolerances possible

• Front cladding made of glass (ESG)

• Cistern fully insulated against condensation

• Side cladding made of aluminium brushed

• Self-supporting

Accessories

• Lateral water supply connection set for Geberit Monolith sanitary module for WC

• Adjustable flush volume

• Water supply connection on the bottom

• Water supply connection on the left/right possible with accessories

Scope of delivery

• Water supply connection set with 2 angle stop valves, 1/2"

• Flush bend extension 160 mm

• Sleeve made of EPDM, ø 44 / 55 mm

• Straight connector made of PE-HD, ø 90 mm

• Connection bend 90° made of PE-HD, ø 90 mm

• Adapter socket made of PE-HD, ø 90 / 110 mm

• Base cover

• Fastening material for drywall

• Fastening material

Art. no.           Colour / surface

131.001.SI.5    white / glass

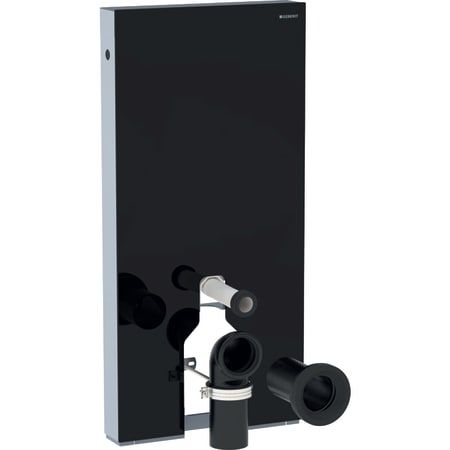

131.001.SJ.5   black / glass

131.001.SQ.5   umber / glass

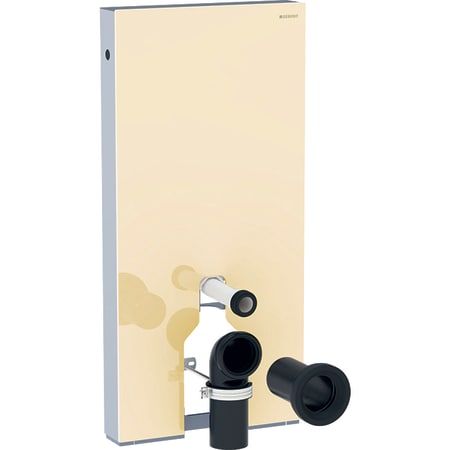

131.001.TG.5   sand / glass

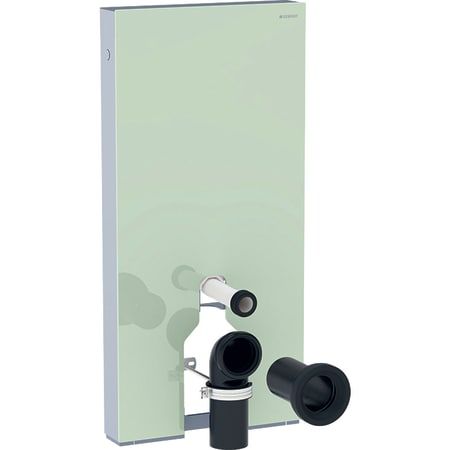

131.001.SL.5    mint / glass
