Application purposes

• For renovations, conversions and new buildings

• For wall inlets with inlet height > 23 cm

• For replacing low-level exposed cisterns

• For replacing half-high level exposed cisterns

• For replacing wall-hung WCs with close-coupled exposed cistern

• For replacing wall-hung WCs with pressure flushing valve

• For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm

• For Geberit AquaClean WC complete solutions

• For connecting Geberit AquaClean WC enhancement solutions, with accessories

• For mounting on finished floors • For installation in front of drywalls or solid walls

• For compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs

Characteristics

• Dual flush

• Compensation of dimensional tolerances possible

• Height-adjustable up to 7 cm

• Front cladding made of glass (ESG)

• Fastening height WC ceramic appliance 35 ± 1 cm

• Cistern fully insulated against condensation

• Side cladding made of aluminium brushed

Accessories

• Geberit straight connector set for wall-hung WC, stepped by 3 cm

• Geberit straight connector set for wall-hung WC, stepped by 7 cm

• Lateral water supply connection set for Geberit Monolith sanitary module for WC

• Self-supporting

• Adjustable flush volume

• Water supply connection on the rear centre

• Water supply connection on the left/right possible with accessories

• Water supply connection on the bottom

Scope of delivery

• Water supply connection set with 2 angle stop valves, 1/2"

• Flush bend extension 160 mm

• Sleeve made of EPDM, ø 44 / 55 mm

• Straight connector made of PE-HD, ø 90 mm

• Adapter socket made of PE-HD, ø 90 / 110 mm

• 2 threaded rods M12

• Sound insulation set

• Base cover

• Fastening material for drywall

• Fastening material

• Fastening material for installation in front of concealed cisterns

Art. no.                Colour / surface

131.031.SI.5          white / glass

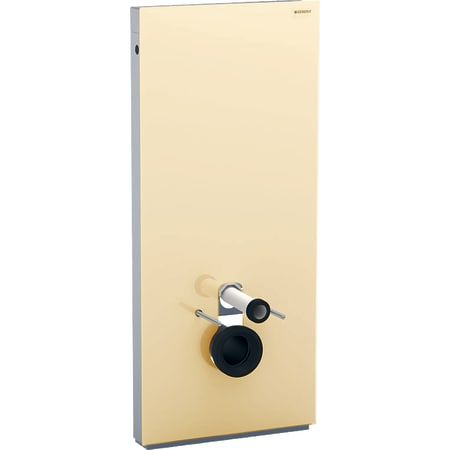

131.031.TG.5         sand / glass

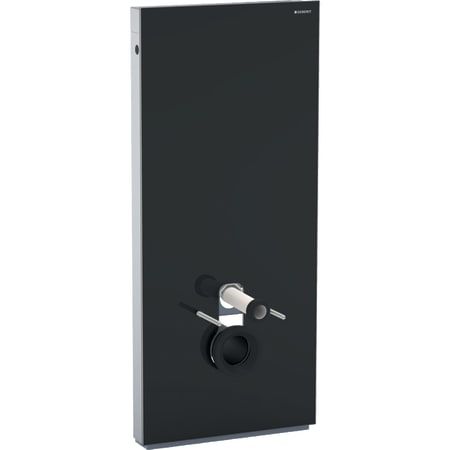

131.031.SJ.5          black / glass

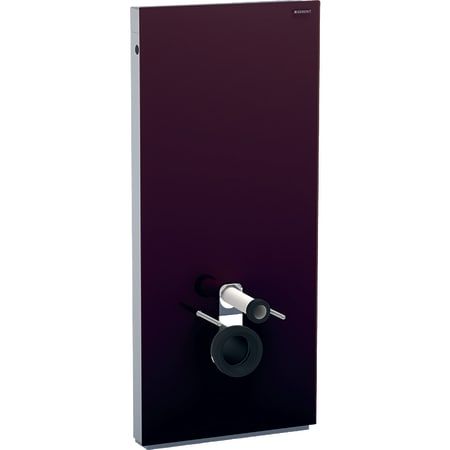

131.031.SQ.5         umber / glass
