Product Specifications:

Technical data

Flow pressure 0.1-10 bar

Flush volume, factory setting 6 and 3 L

Flush volume large, adjustment range 4.5 / 6 / 7.5 L

Flush volume small, adjustment range 3-4 L

Product Description

Application purposes

• For masonry walls

• For installation in part- or room-height prewall installations

• For installation in room-height installation walls

• For floor-standing WCs

• For dual flush



Characteristics

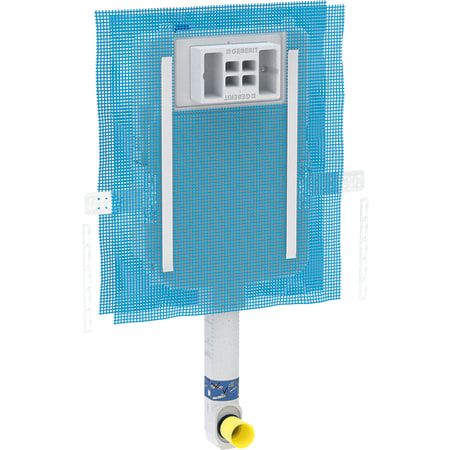

• Concealed cistern with front actuation

• Concealed cistern fully insulated against condensation

• Premounted direct plastering netting

• Immediate post flush possible with factory setting

• Flush bend fitted

• Flush bend adjustable 2 cm upwards and 1 cm downwards

• Water supply connection on the top left



Scope of delivery

• Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel

• Protection box for service opening, made of polystyrene foam

• Flush bend with recess shells

• Flush bend extension, ø 45 mm

• Protection plug

• 2 slotted flat irons

• 2 mounting shoes

• Fastening material
