Application purposes

• For floor inlets

• For renovations, conversions and new buildings

• For wall inlets with an inlet height of 18 cm

• For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109 cm

• For replacing low-level exposed cisterns

• For replacing half-high level exposed cisterns

• For replacing floor-standing WCs with close-coupled exposed cistern

• For connecting Geberit AquaClean Sela floor-standing WC

• For connecting Geberit AquaClean Tuma WC complete solution, floor-standing WC

• For connecting Geberit AquaClean WC enhancement solutions, with accessories

• For replacing pressure flushing valves

• For mounting on finished floors

• For installation in front of drywalls or solid walls

Characteristics

• Dual flush

• Compensation of dimensional tolerances possible

• Front cladding made of glass (ESG)

• Cistern fully insulated against condensation

Accessories

• Lateral water supply connection set for Geberit Monolith sanitary module for WC

• Side cladding made of aluminium brushed

• Self-supporting

• Adjustable flush volume

• Water supply connection on the rear centre

• Water supply connection on the left/right possible with accessories

• Water supply connection on the bottom

Scope of delivery

• Water supply connection set with 2 angle stop valves, 1/2"

Art. no.               Colour / surface

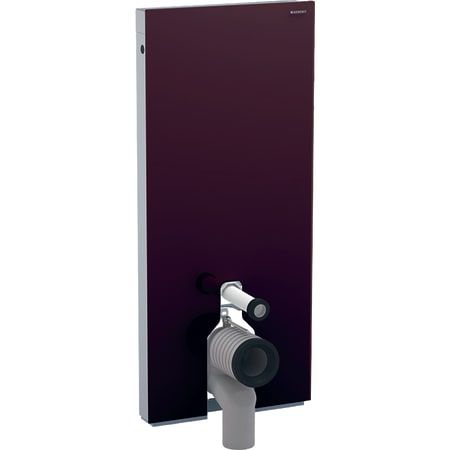

131.033.SQ.5     umber / glass

131.033.SI.5       white / glass

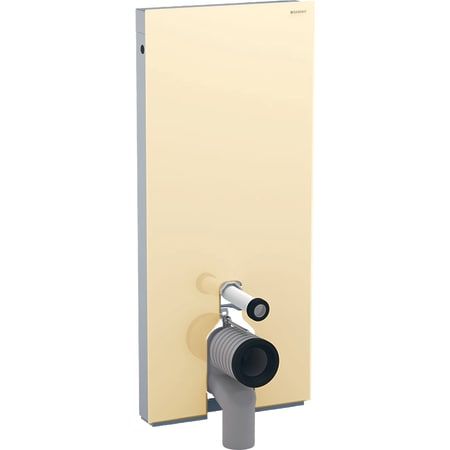

131.033.TG.5      sand / glass

131.033.SJ.5      black / glass

• Flush bend extension 160 mm

• Connection bend made of PP, ø 90 mm

• Sleeve made of EPDM, ø 44 / 55 mm

• Adapter socket made of PE-HD, ø 90 / 110 mm

• Fastening material

• Base cover

• Fastening material for drywall
