Application purposes

• For masonry walls

• For installation in part- or room-height prewall installations

• For installation in room-height installation walls

• For floor-standing WCs

• For single flush, dual flush or stop-and-go flush

Characteristics

• Series 2016

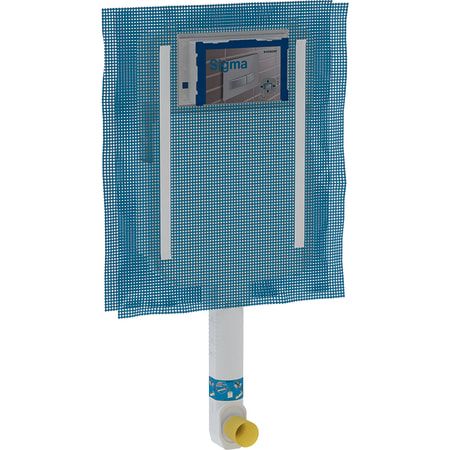

• Concealed cistern with front actuation

• Concealed cistern fully insulated against condensation

• Premounted direct plastering netting

• Immediate post flush possible with factory setting

• Flush bend fitted

• Flush bend adjustable 2 cm upwards and 1 cm downwards

• Tool-free installation and maintenance work on concealed cistern

• Water supply connection on the top left

• Protection box for service opening can be cut to length, suitable for surface-even actuator plates

Scope of delivery

• Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel

• Protection box for service opening

• Flush bend with recess shells

• Flush bend extension, ø 45 mm

• Protection plug

• 2 slotted flat irons

• Fastening material
